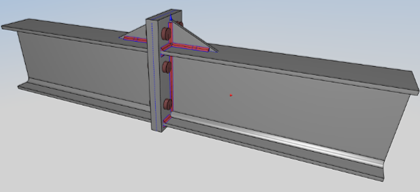

Voilà un exemple de connexion poutre-poutre par platine d'about.



Le script de la géométrie est le suivant:

BEAM('Beam0', '0.50', 'IPE 200', 20, 'locOrigin', Plus_XLoc, 'XAxis', Plus_ZLoc, 'ZAxis', 275, 275)
PLATE('Plate0','0.008', 'RECTANGLE', {'b':'0.120','h':'0.285'}, 105, POINT('0','0','-0.015' ), Plus_XLoc, 'XAxis', Plus_ZLoc, 'ZAxis', 235, 235)
PLATE('Plate1','0.008', 'HEXAGONE', {'b':'0.12','ed1':'0','ed2':'0','eg1':'0.05','eg2':'0.119','h1':'0','h2':'0.06'}, 506, 'Beam0:v19', Plus_XLoc, 'YAxis', Plus_ZLoc, 'ZAxis', 275, 275)
CONNECT(["Plate1", "Beam0"], ["Plate0"], GLUED)
CONNECT(["Plate1"], ["Beam0"], GLUED)
SYMMETRY('Symmetry0',["Beam0", "Plate0", "Plate1"], PLANE('Plate0:v2', 'Plate0:v1', 'Plate0:v4' ))
BOLTS('Bolts0',['Plate0:f2'], ['Symmetry0: Plate0:f2'], [POINTS('Plate0:f2', 'Plate0:e2','0.0275','0.035','0.065','0.10','2','1',False,'' ),POINTS('Plate0:f2', 'Plate0:e2','0.0275','0.115','0.065','0.10','2','2',False,' ' )], 'M16', 0, '10.9' )
BOUNDARIES(('Boundary1','Symmetry0:Beam0:f2' ),('Boundary0','Beam0:f2','Beam0:v0' ))
